Chevron Conveyor Belt
Products properities:
Can slope 0-400 to prevent materials from falling off, and to improve the capability of the belt.
1. The material select cotton canvas, nylon canvas or polyester canvas;

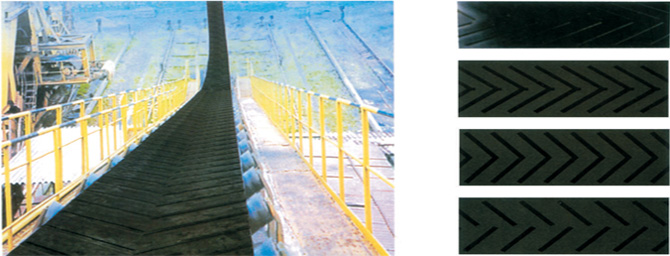

2. Category: herringbone pattern, column pattern
3. Production width: 400-1000mm, layers: 3-10 layers
4: The Thickness of the Belt : 5mm, 10mm, 15mm
The Adhesion and Elongation of the Belt
| Belt carcass |
Adhesion strength |
Elongation |
| Between plles N/mm |
Between rubber and carcass
N/mm |
Longtudinal elongation break |
Longtuainal elongation rate at reference load |
| Rubber thickness |
Rubber thickness |
| EP canvas |
≥4.50 |
≥3.15 |
≥3.50 |
10 |
1.5 |
The Common Grade of the Cover Rubber
| Cover grade |
Tensile strength |
Elongation at break |
Abrasion |
| Mpa |
% |
mm3 |
| H |
24 |
450 |
120 |
| D |
18 |
400 |
100 |
| L |
15 |
350 |
200 |
ATTATION：H-High intensity working conditions D-High abrasion working condition L-Normal working condition
The Standard will be exactly follow GB/T 7984-2001、DIN 22102 |
