Nylon Conveyor Belt
Products properities:
A- Nylon is one of the best quality synthetic fibers the rubber industry uses nowadays.
B- The nylon canvas is woven by nylon fabric both in warp and in weft.
C- It is the most widely used fabric in rubber industry, and its outstanding merits are its high abrasion resistance, high tensile strength and good fatigue resistance.
D- Conveyor belt with nylon canvas inside has the characteristics of thin belt body, high tensile strength, good shock resistance, good trough ability, high adhesion between plies, splendid flexibility and long working life.

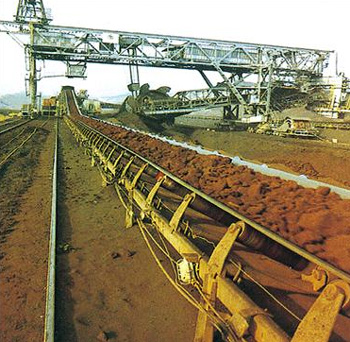

E- Nylon conveyor belts are suitable for medium, long distance and heavy-load transportation of materials, widely used in mining, metallurgical industry and architectural industry, ports and so on.
Specification and technical data of multi-ply nylon conveyor belt
| Fdbric type |
Fabric structure |
Fabric type |
Fabric Thickness |
Strength series |
Cover Rubber Thickness |
Width Mm |
Length m |
| Warp |
Wei |
2ply |
3ply |
4ply |
5ply |
6ply |
Upper |
Lower |
Nylon
(NN) |
Nylon
(N) |
Nylon
(N) |
NN-100 |
0.75 |
200 |
300 |
400 |
500 |
600 |
1.5-8 |
0-4.5 |
| 400-2500 |
| 500-2500 |
| 800-2500 |
|
≤300 |
| NN-150 |
0.80 |
300 |
450 |
600 |
750 |
900 |
| NN-200 |
0.90 |
400 |
600 |
800 |
1000 |
1200 |
| NN-250 |
1.15 |
500 |
750 |
1000 |
1250 |
1500 |
| NN-300 |
1.25 |
|
900 |
1200 |
1500 |
1800 |
| NN-400 |
1.45 |
|
|
1600 |
2000 |
2400 |
| NN-500 |
1.55 |
|
|
2000 |
2500 |
3000 |
The Adhesion and Elongation of the Belt
| Belt carcass |
Adhesion strength |
Elongation |
| Between plles N/mm |
Between rubber and carcass
N/mm |
Longtudinal elongation break |
Longtuainal elongation rate at reference load |
| Rubber thickness |
Rubber thickness |
| Nylon canvas |
≥4.5 |
≥3.15 |
≥3.5 |
10 |
2.0 |
The Common Grade of the Cover Rubber
| Cover grade |
Tensile strength |
Elongation at break |
Abrasion |
| Mpa |
% |
mm3 |
| H |
24 |
450 |
120 |
| D |
18 |
400 |
100 |
| L |
15 |
350 |
200 |
Remarks: H---High intensity working condition
D---High abrasion working condition
L---Normal working condition
Our company also can produce all kinds of performance conveyor belt under AS1332-2000、JISK6322；1999、DIN2212-1991 standards and so on...
Application:
It is suitable for conveying materials with chemical corrosiveness in chemical factory,chemical fertilizer factory,paper mill,mining industry and etc. |
|
|
